Drillsoft™

Drillsoft™ is REAL TIME HYDRAULICS Software that concentrates on drilling hydraulics and modeling wellbore pressures and temperatures during all phases of the drilling operation in extended-reach, highly deviated, horizontal and high temperature and high pressure (HTHP) wells. The simulator uses state of the art algorithms and provides the user with a wide range of modeling options.

The simulator includes a well trajectory and planning model for single or multiple well directional profiles, whether computed or imported from other directional survey service providers. The well trajectories are displayed in 3-D profile.

Drillsoft™ calculates and evaluates down-hole temperatures during drilling, circulating and shut-in operations for land and deep-water wells. A finite difference mathematical model has been developed to predict well bore and formation transient temperature behavior during drilling, fluid circulation and shut-in operations. This includes wells with multiple temperature gradients and well bore deviations, based on the fluids physical characteristics. The PVT model accurately calculates ECD and ESD according to formation and wellbore temperature profiles.

Drillsoft™ can be used to analyze and optimize the hydraulics program for complex wells where there is a tight tolerance between ECD and fracture pressure, or pore pressure and fracture pressure. It takes into account the down-hole effects on rheological properties and mud density, in addition to the effects of RPM, tool-joints and cuttings loading on pressure loss calculations, enabling accurate predictions of ECDs.

Drillsoft™ Features

  1. Easy and intuitive user interface
  2. Real Time integration via WITS-0 (Send/Receive)
  3. WITS TCP or Serial
  4. Tubular Library (Casing/Drill string lookup tables)
  5. Directional Wellbore live (fluids and data)
  6. Fluid tracking
  7. 2D/3D views
  8. Store/Record data MS-Access Database (Excel compatible)
  9. Well modeling supporting :
    • Surge & Swab Correction
    • Pressure and Temperature Correction
    • Cuttings Load Correction
    • Manual/PWD Correction Factor
    • Consider RPM Effect
    • Support Five (5) Rheology Models
  10. Quick hydraulic Calculations
  11. Rheology Optimization
  12. Quick Calculations for Valves Failure
  13. Roll Over Calculations (Mud Cap)
  14. Surge Swab Calculations (Optimize RIH & POOH)

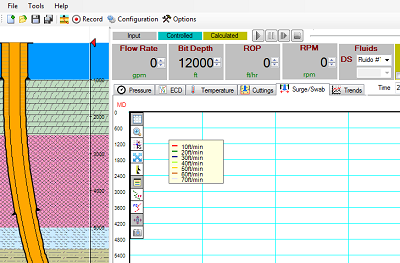

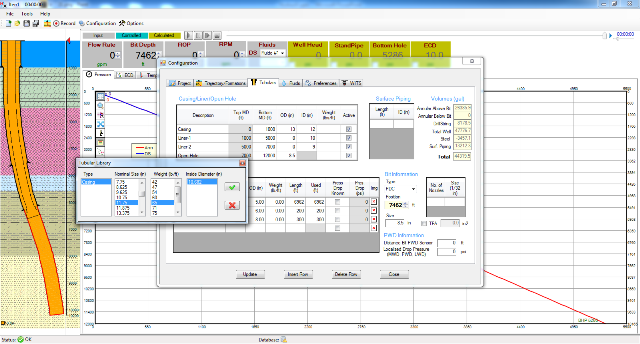

Screenshot Drillsoft™
